the purpose may be used for positioning, eg, during rendezvous docking. The ascent module has to dock with orbiter very precisely, on the scale of centimeter, or millimeter.
>>> RF ranging. Minmum 2 antenna rods needed for ranging. 3 rods can make 3 measurements same time, to increase accuracy.

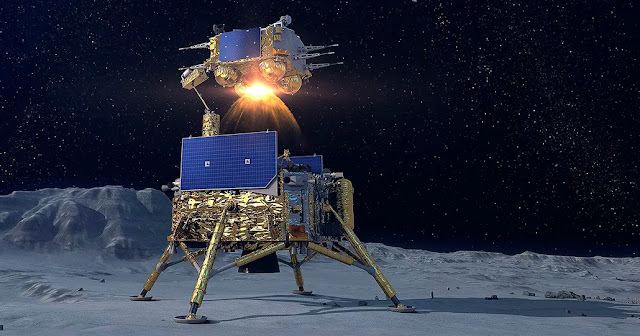

Upon successful capture of ascent module, the moon samples can then be transferred to re-entry capsule ( located inside the orbiter)
or it is a periscope( backup periscope bck-4), as in soyuz spacecraft ?

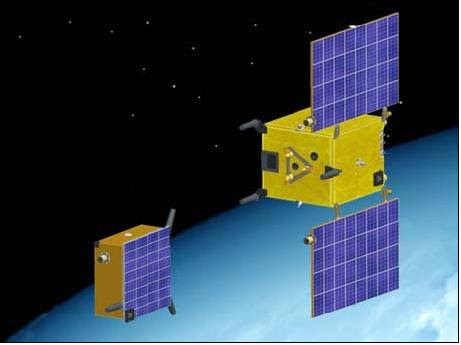

is it RF metrology antenna or FFRF (formation flying Radio Frequency) sensor in PRISMA
from France , Swedish Space Corp or CNES? the main purpose is for automatic rendezvous of two spacecrafts
If it is really a FFRF for rendezvous, why are they mounted on one side of spacecraft, rather than the "mating" side?
a high-gain antenna is particularly good at transmitting signals in a narrow beam whereas a low-gain antenna tends to send its signal in a much wider sweep of directions.
Because a low-gain antenna spreads its power out over a wider volume in space, the signal received by a ground station is weaker. This signal cannot carry as much information as a high-gain signal where the available power is concentrated to beam the signal accurately back to its target. Dish-shaped antennas are particularly good at focusing radio beams and so make excellent high-gain antennas.
Spacecraft always carry both high- and low-gain antennas. Although the high-gain antenna is used to return the majority of the data collected, if the spacecraft has to turn even a little, the high-gain signal could miss the Earth. The low-gain antenna does not suffer from such a problem because it transmits over a wider volume.
So even though they transmit and receive at slower rates, low-gain antennas are used to take over as back-ups when the high-gain antenna cannot be used. Spacecraft normally carry two of them on opposite sides. That way, they provide total coverage around the spacecraft.
Low-gain antennas are essential in critical situations. For example, if a spacecraft lost the ability to point itself, the low-gain antenna will always receive signals from Earth, allowing engineers to begin fixing the problem.
Nowadays, even in low light conditions, digital camera can quality pictures with higher ISO, noise and hot pixels have been gradually reduced. Sony has introduced back illumination process for consumer market. Sony BSI sensors evolved from Exmor to now Exmor RS( stacked) technology. This stacked technology allows further chip size reduction, which has strong demands in smartphone camera market. Digital astrophotography is also benefited from such advances, utilising Back Side Illumination technology Exmor: Within the CMOS sensor, it outputs low-noise digital signals by "on-chip column AD conversion" and "dual noise reduction" to suppress noise in the first half of the process In low light conditions, when a wide aperture is desirable to collect as much light as possible. At apertures wider than f/2.0, back-illuminated Exmor R sensors are significantly more efficient at collecting light than conventional, front-illuminated sensor...
14 Oct 2020, being the first to use a new “ultrafast” rendezvous” scheme with the ISS. Following a flawless ascent to the correct orbit, Soyuz 2 .1a , Soyuz MS-17 caught up with the orbiting laboratory in only two orbits (three hours), halving the time it takes for crew to get to the Station. The three space travelers of the Soyuz MS-17 mission launched on a six-month mission the International Space Station. previous 3/4 orbit rendezvous: Soyuz MS-16 4 orbit rendezvous A three-orbit profile was deemed possible without major flight design changes after inauguration of the Soyuz 2-1A rocket that provides a much higher orbit injection accuracy than its predecessors and would allow the two correction maneuvers on Orbit #2 to be eliminated while the Automated Rendezvous Phase would still remain untouched. The deletion of the Orbit #2 maneuvers was expected to slightly tighten the already restrictive phase angle window from and upper limit of 30-35° to 25-28°...
